Metal welded wire mesh gabion mattress / &river gabin mattress
Product Description:

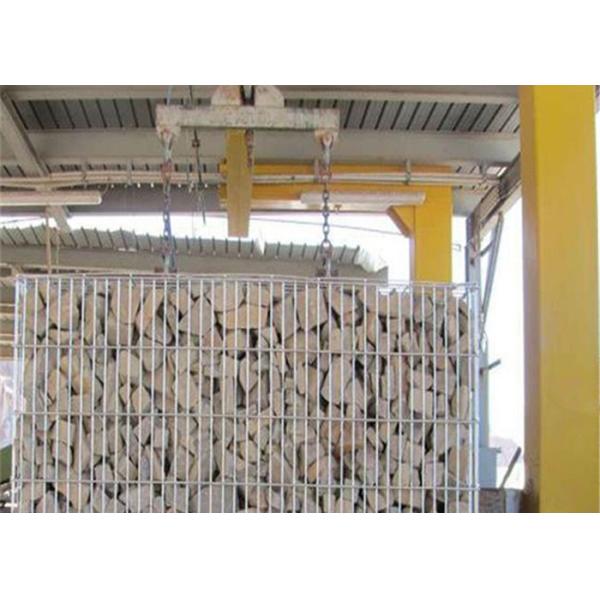

Welded Wire Mesh Gabion & Gabion Mattresses
These flexible, permeable, rock-filled and interconnected modular units create a monolithic wall for earth retention or a blanket for soil stabilization, providing the civil engineer a unique building material that aesthetically blends that sheared-rock look into its natural environment.
Welded wire mesh means that each point of contact in the grid is actually welded to form a more rigid connection, making this type of gabion indispensable in achieving a more flat, sharp appearance. The added stiffness makes rock filling less cumbersome for better installation times and reduced labor costs.
Sizes of River mattress/:
| Length (m) | Width (m) | Height (m) | Mesh Type (cm) |
| 3 | 2 | 0.17 - 0.23 - 0.30 | 5x5 |
| 4 | 2 | 0.17 - 0.23 - 0.30 | 5x5 |
| 5 | 2 | 0.17 - 0.23 - 0.30 | 5x5 |
| 6 | 2 | 0.17 - 0.23 - 0.30 | 5x5 |
Features of welded
PRE-ASSEMBLED
Lane gabions are shipped flat (i.e. collapsed) with hinged panels that easily fold into a rectangular basket. Sides are raised and the seams temporarily fastened. The basket is placed and adjacent edges permanently laced.
QUICKER ASSEMBLY
Once expanded and placed, gabions are simply and securely interconnected with corkscrew spiral binders at each vertical junction. Welded wire mesh gabions are assembled, placed and filled considerably faster than their woven wire counterparts.
BETTER SHAPE CONTROL
Welded wire mesh provides shape control superior to twisted or woven wire fabric. Diaphragms and preformed stiffeners brace adjacent panels and provide added stiffness for even more shape control.
ASTM A974
Lane gabions and mattresses are manufactured to the ASTM A974 standard, which also establishes minimum requirements for preassembly of the baskets and mattresses for shipping. The wire mesh used is galvanized or PVC coated for applications where greater durability is desired.
Applications:
Welded . The main application of welded is for decoration, such as landscape construction, fire place and planters applications. It can be used for slope protection as the woven .
When requesting a quote, please specify:
size of units (LxWxH)
type of mesh size (60*80,80*100mm)
type of coating (galvanized wire, galfan wire,pvc coated wire)
Wire diameter(2mm,3mm)
